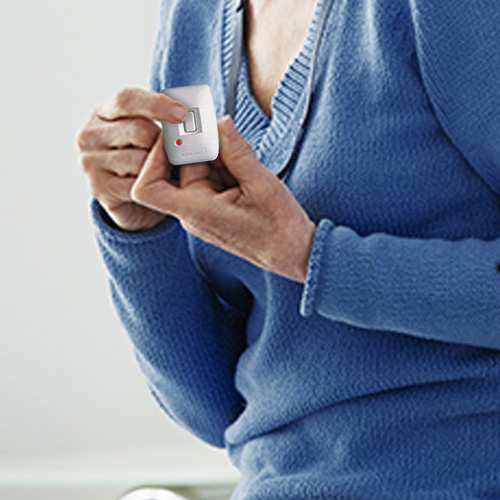

ปุ่มฉุกเฉินแบบห้อยคอ ออกแบบมาเพื่อรองรับการเชื่อมต่อกับระบบไร้สาย หรือตัวรับสัญญาณอุปกรณ์ไร้สายของ Risco ใช้สำหรับกดเพื่อส่งสัญญาณฉุกเฉินหรือขอความช่วยเหลือ
ใช้พลังงานจากแบตเตอร์รี่ 12V พกพาสะดวกและใช้งานง่าย อุปกรณ์มาพร้อมกับเชือกไนล่อนสำหรับคล้องคอ
โดยอุปกรณ์ที่ผลิตจากโรงงานจะมีการสุ่มรหัสของอุปกรณ์มากกว่า 16 ล้านรหัส ทำให้ไม่ต้องใช้การปรับ DIP Switch ที่ตัวอุปกรณ์เพื่อแยก ID ของอุปกรณ์แต่ละชิ้น
ผู้ป่วยหรือผู้สูงอายุ สามารถกดขอความช่วยเหลือ
ส่งสัญญาณไปยังตู้ควบคุมเพื่อให้ไซเรนดัง
หรือโทรแจ้งเตือน
The Pendant Transmitter must initially identify itself to the system’s receiver by
writing its coded address into the receiver’s address memory. This is accomplished
by performing the following steps:
1. Follow the WRITE MODE procedure described in the Receiver’s Installation
Manual.
2. Send a WRITE message by pressing the transmitter button for at least 3 seconds
until the receiver indicates acceptance of the address code.
3. Follow the Communication Check procedure described in the Receiver Manual.
4. Set the receiver to Normal Mode.
SPECIFICATIONS
ELECTRICAL
Battery Type: 23A, 12V Alkaline Battery (included)
Current Consumption: 1 A standby
Modulation Type: RWT50P86800A: ASK / RWT50EUV2: OOK
Battery Life: 1 year
Operates up to: 492 feet (150m) range (LOS)
ENVIRONMENTAL
RF Immunity: According to EN50130-4
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
