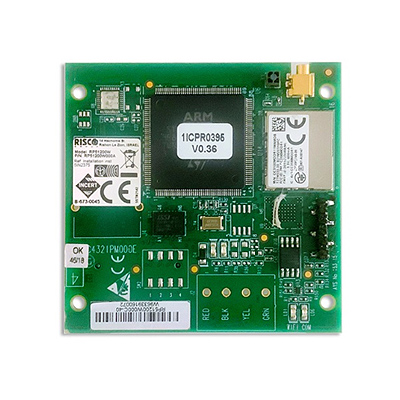

The WiFi Communication Module is a plug-in module enabling the connection of a ProSYS Plus, Agility or WiComm Pro Control Panel to an IP network via a WiFi router.
The WiFi module offers a convenient solution for a faster installation, without the need to wire a LAN cable to the Control Panel.
The Multi-Socket WiFi Module enables parallel notification and reporting of events to RISCO Cloud, Monitoring Stations and Follow Me destinations using one communication module. The WiFi Communication Module also supports remote access to the panel using CS.
An external Antenna can be connected to improve the WiFi performance.
| Parameter | Description |
| Current Consumption (standby) | 60 mA |
| Maximum Current Consumption | 115 mA |
| Operating temperature | -10°C to 55°C (14°F to 131°F) |
| Storage temperature: | -20°C to 60°C (-4°F to 140°F) |
| Average Relative Humidity | 75% approx. |
| Dimensions (W x H): | 80 x 50 x 25 mm (3.1 x 2 x 1″) |
| Standards | 802.11 b/g/n |
| TX Power | 17 dBm at 1 DSSS 17.25 dBm at 11 CCK 13.5 dBm at 54 OFDM |
| RX Sensitivity | -94.7 dBm at 1 DSSS -87 dBm at 11 CCK -73 dBm at 54 OFDM |
| Radio | Band 2.4 GHz ISM |
