ข้อมูลสินค้า

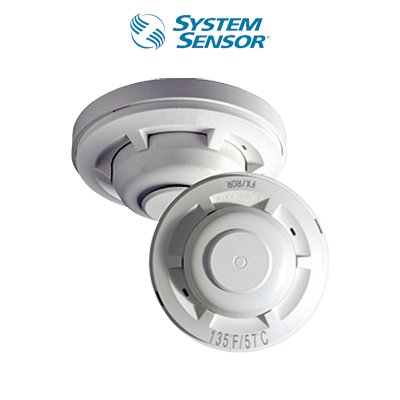

- Multiple configurations for installations:
– Single- and dual-circuit models– Fixed temp and combination xed- temp/rate-of-rise135°F or 194°F ratings. - Plain housing for residential installations (Model 5601P) Easy-to-use terminal screws
- A broad range of back box mounting options: – Single gang
– 3.5 ̋ and 4 ̋ Octagonal
– 4 ̋ square with square to round plaster ring - Reversible mounting bracket
| Physical/Operating Speci cations | |
| Maximum Installation Temperature | 5601P, 5603, 5621, and 5623: 100°F (38°C) 5602, 5604, 5622, and 5624: 150°F (65.6°C) |
| Operating Humidity Range | 5 to 95% RH non-condensing |
| Dimensions with mounting bracket | Diameter: 4.57 inches (11.6cm) Height: 1.69 inches (4.3cm) |
| Alarm Temperature | 5601P, 5603, 5621, and 5623: 135°F (57°C) 5602, 5604, 5622, and 5624: 194°F (90°C) |
| Weight | 6 oz. (170 grams) |
| Rate-of-Rise Threshold | 15°F (8.3°C) rise per minute (models 5601P, 5602, 5621, and 5622 only) |
| Mounting | 31⁄2-inch octagonal back box 4-inch octagonal back box Single gang back box 4-inch square back box with a square to round plaster ring |
| Electrical Speci cations | |
| Operating Voltage / Contact Ratings |
6–125VAC / 3A 6–28VDC / 1A 125VDC / 0.3A 250VDC / 0.1A |
| Input Terminals | 14–22 AWG |
| Alarm Temperature | 5601P, 5603, 5621, and 5623: 135°F (57°C) 5602, 5604, 5622, and 5624: 194°F (90°C) |
