BWARE™

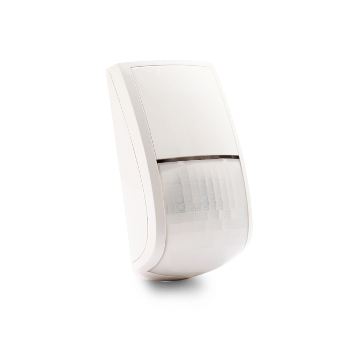

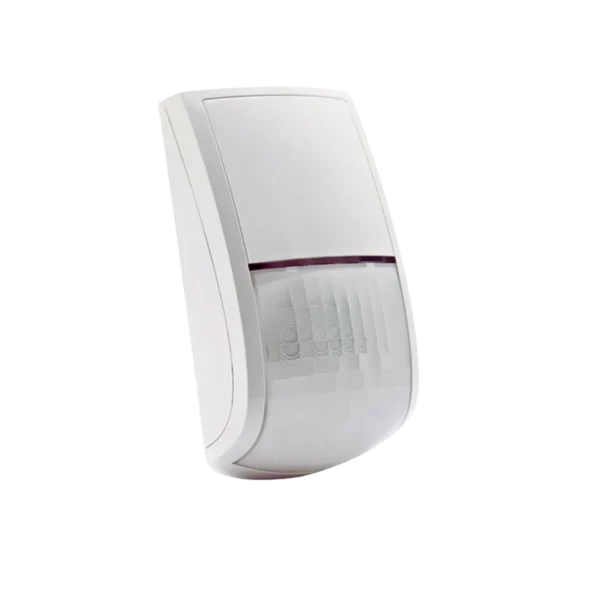

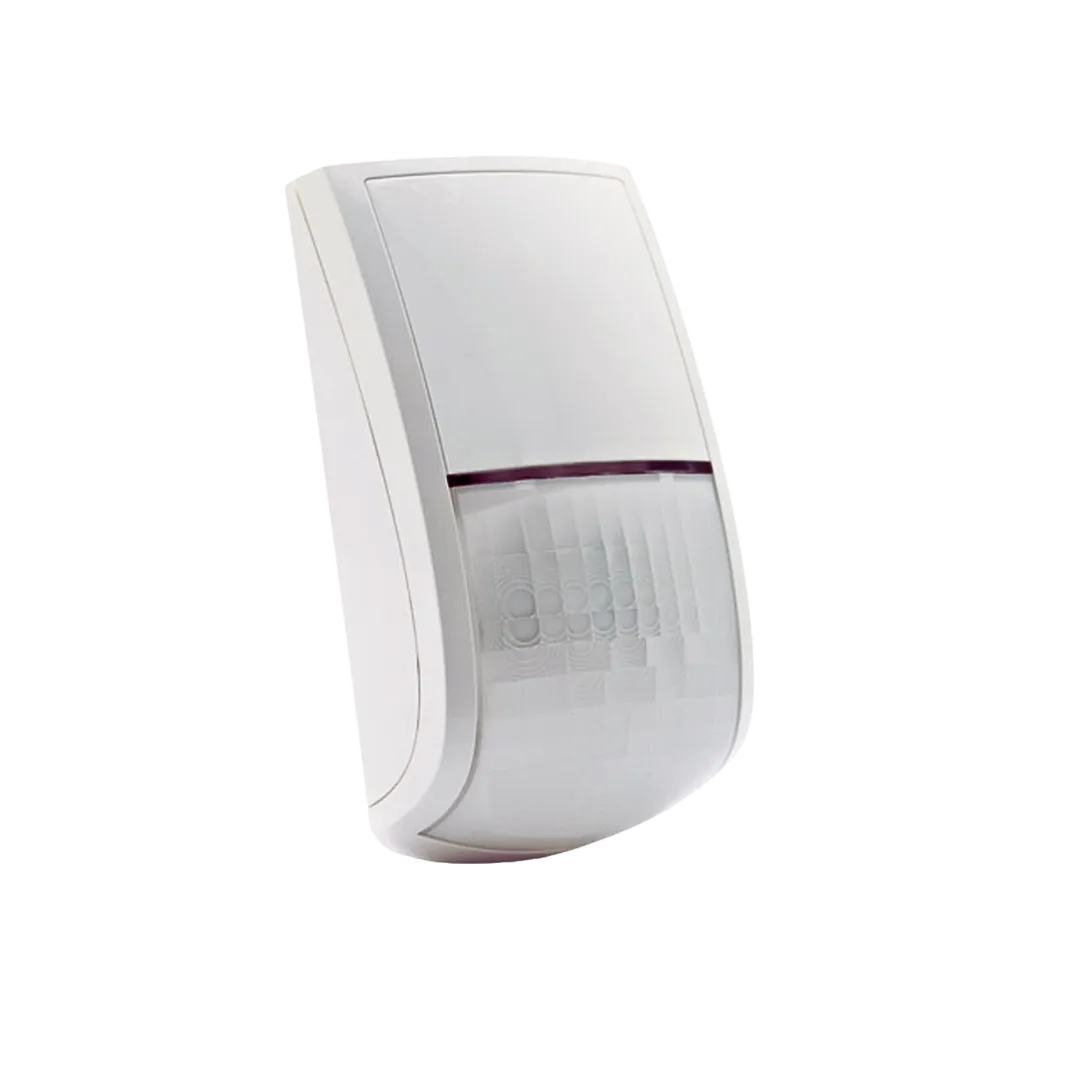

BWare™ is RISCO Group’s state-of-the-art commercial detector series.

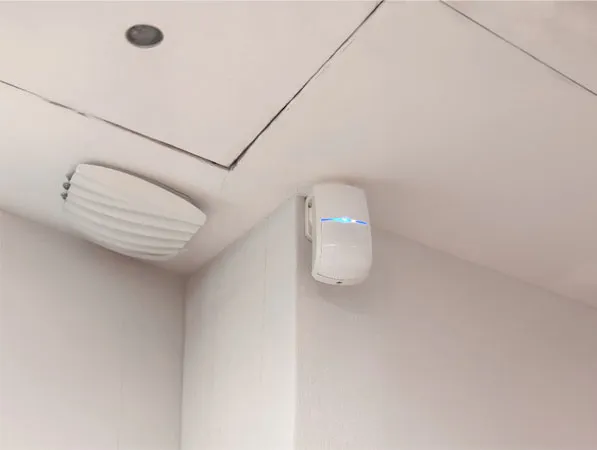

Powered by RISCO’s detection technologies, these elegant and easy to install detectors are ideal for commercial, institutional and high-end residential installations. BWare™ is extremely reliable thanks to its usage of K-band microwave and other unique detection technologies. A convex lens provides enhanced catch performance and gold-plated wall and cover tampers for higher reliability.

หมวดหมู่: ProSYS Motion Detector, Risco ProSYS, ระบบกันขโมยแบบเดินสาย

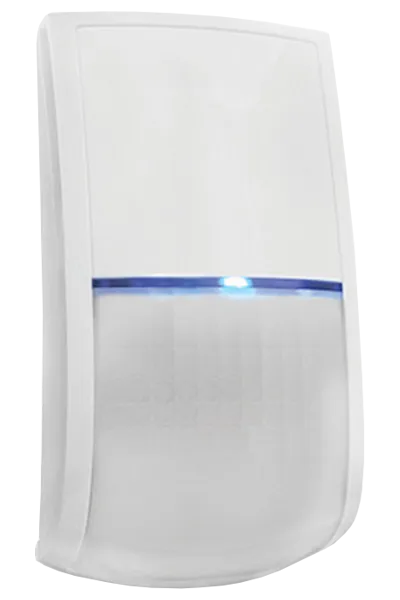

BWare™ Professional Detector Series

BWare™, RISCO Group’s state-of-the-art professional detector series, scores high points for its elegant and modern design in addition to its advanced technology and reliability.
Incorporating RISCO Group’s unique Anti-Cloak™ Technology for detecting cloaked burglars, BWare™ DT also utilizes K-band microwave technology for reducing false alarms.
The BWare™ Bus models save installation time and cost, and can be remotely
serviced using the RISCO Bus.
The BWare™ series is ideal for a wide range of commercial and high security applications, with Grade 2 and Grade 3 versions of Dual Technology, QUAD and RISCO Bus models available.

Grade 3 for increased security

BWare™ Grade 3 detectors meet and exceed EN50131
Grade 3 standards and include additional features that
increase reliability and false alarm immunity.

Anti-Cloak™ Technology (ACT)
for increased catch performance

Radically increases catch performance in situations where the
PIR signal becomes too weak to detect an intruder such as
when intruders attempt to “cloak themselves” or in a heat
wave when the room temperature approaches 37ºC.

RISCO Bus for faster,
less costly installations

BWare™ Bus detectors are compatible with RISCO Bus
installations which reduces total cable lengths, labor costs,
physical zone expanders and on-site maintenance, saving
valuable time and money. An extra zone input on BWare™
Bus models allows the convenient connection of any relay
detector, saving on cabling back to the panel.

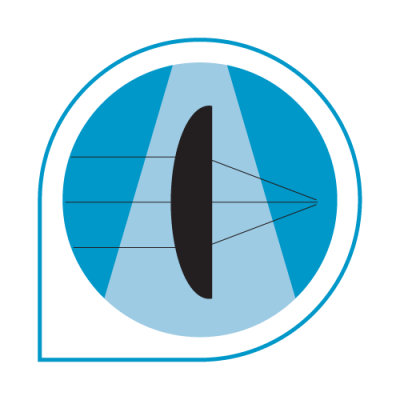

Convex Lens for enhanced performance

BWare™’s convex lens is superior as its larger size and
convex shape allow more infrared radiation to enter the
detector, improving focus on the sensor and enhancing
performance and sensitivity.

Grade 3 for increased security

BWare™ Grade 3 detectors meet and exceed EN50131
Grade 3 standards and include additional features that
increase reliability and false alarm immunity.

Anti-Cloak™ Technology (ACT)
for increased catch performance

Radically increases catch performance in situations where the
PIR signal becomes too weak to detect an intruder such as
when intruders attempt to “cloak themselves” or in a heat
wave when the room temperature approaches 37ºC.

RISCO Bus for faster,
less costly installations

BWare™ Bus detectors are compatible with RISCO Bus
installations which reduces total cable lengths, labor costs,
physical zone expanders and on-site maintenance, saving
valuable time and money. An extra zone input on BWare™
Bus models allows the convenient connection of any relay
detector, saving on cabling back to the panel.

Convex Lens for enhanced performance

BWare™’s convex lens is superior as its larger size and
convex shape allow more infrared radiation to enter the
detector, improving focus on the sensor and enhancing
performance and sensitivity.

คุณสมบัติ

Elegant sleek design with a single convex lens
Dual MW and PIR technologies
15m (50’) coverage
Anti-Cloak™ technology (ACT™)
Green Line™ for disabling the MW during disarm

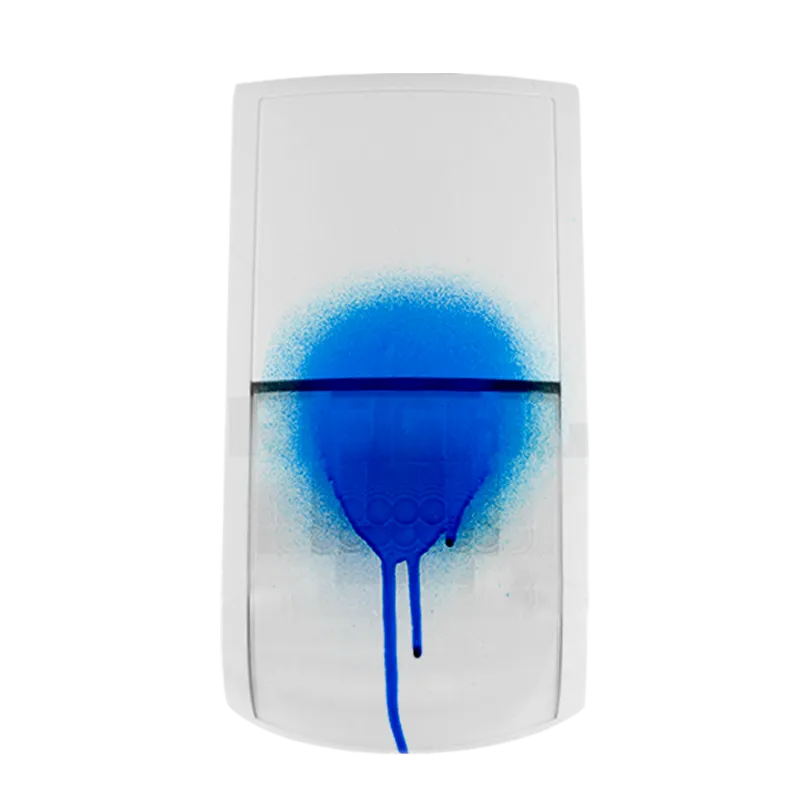

Active IR Anti-mask on Grade 3 models
Built-in Triple EOL resistors, jumper selectable
Opto relays for defeating large magnets
Cover and wall/corner tampers
Corridor and Curtain lenses (optional)
Model names: RK515DTG3: BWare™ DT AM Grade 3 15m (50’)
RK 515DTGL: BWare™ DT Grade 2 15m (50’)

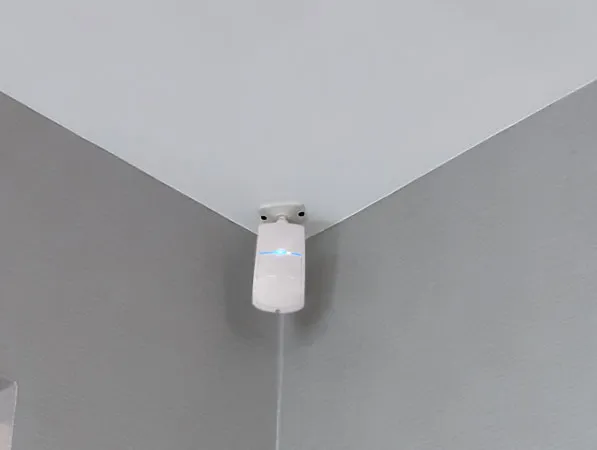

: BWare™ Wall/ Ceiling Swivel

ข้อมูลทางเทคนิค

Type: Indoor DT
PD6662, EN50131-2-4: Grade 3
RISCO Bus: Special BWare Bus Models
Microwave K-band
PIR sensor Dual element
Anti-Cloak™ technology
Green Line
Intelligent digital signaling Processing
true temperature compensation
Built in EOL resistors, jumper selectable
Anti-mask method – Active IR
Coverage Wide angle 15m (50’)
Optional lenses – Corridor lens 23m (75’) Curtain lens (15m (50’)

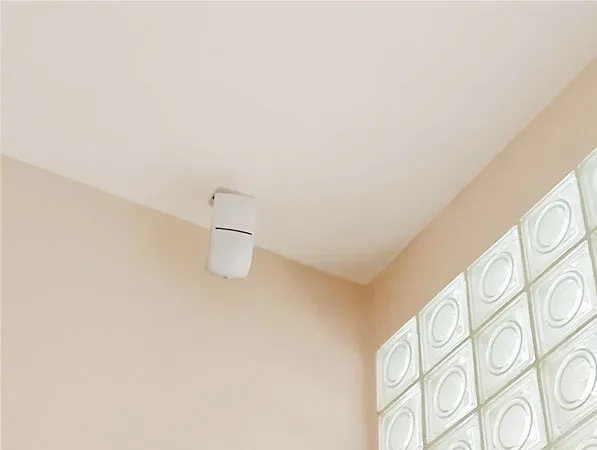

Mounting height – 2.1m- 2.7m (6’11”-8’10”)
Optional accessories – Swivel
Current Consumption – 16mA at 12VDC (typical) 41mA at 12VDC (max)
Voltage requirements – 9-16VDC
RF Immunity – According to EN50130-4
Operating temperature – -10°C to 55°C (14°F to 131°F)
Storage temperature – -20°C to 66°C (-4°F to 140°F)
Filtering White light protection
Physical Size 127.6 x 64.6 mm (5×2.5×18.4in.)
Weight – 120 gr. (4.2 oz.)
