ข้อมูลทางเทคนิค
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 256×192 |
| Pixel Interval | 12μm |
| Response Waveband | 8-14μm |
| NETD (Noise Equivalent Temperature Difference) |
≤ 40 mk @ 25℃ F ＃ 1.0, 25Hz |
| Lens (Focal Length) | 3.2mm |
| IFOV | 3.75 mrad |
| Field of View | 56°x42° |
| Min. Focusing Distance | 0.3m |
| DRI Distance Human(Beta Version) |
Detection: 148m(486ft), Recognition: 36m(118ft), Identification: 21m(69ft) |
| DRI Distance Vehicle(Beta Version) |
Detection: 421m(1381ft), Recognition: 90m(295ft), Identification: 53m(174ft) |
| Heat Detection Distance(Beta Version) |
44m(144ft) |
| Aperture | F 1.1 |
| Optical Module | |
| Max. Image Resolution | 2592*1944 |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 @IR ON |
| Shutter Speed | 1/5 s to 1/100,000 s |
| Lens (Focal Length) | 3.6mm |
| Field of View | Horizontal: 81°, Vertical: 57°, Diagonal: 108° |
| WDR | 120dB |
| Day & Night | IR cut filter with auto switch |
| Image Function | |

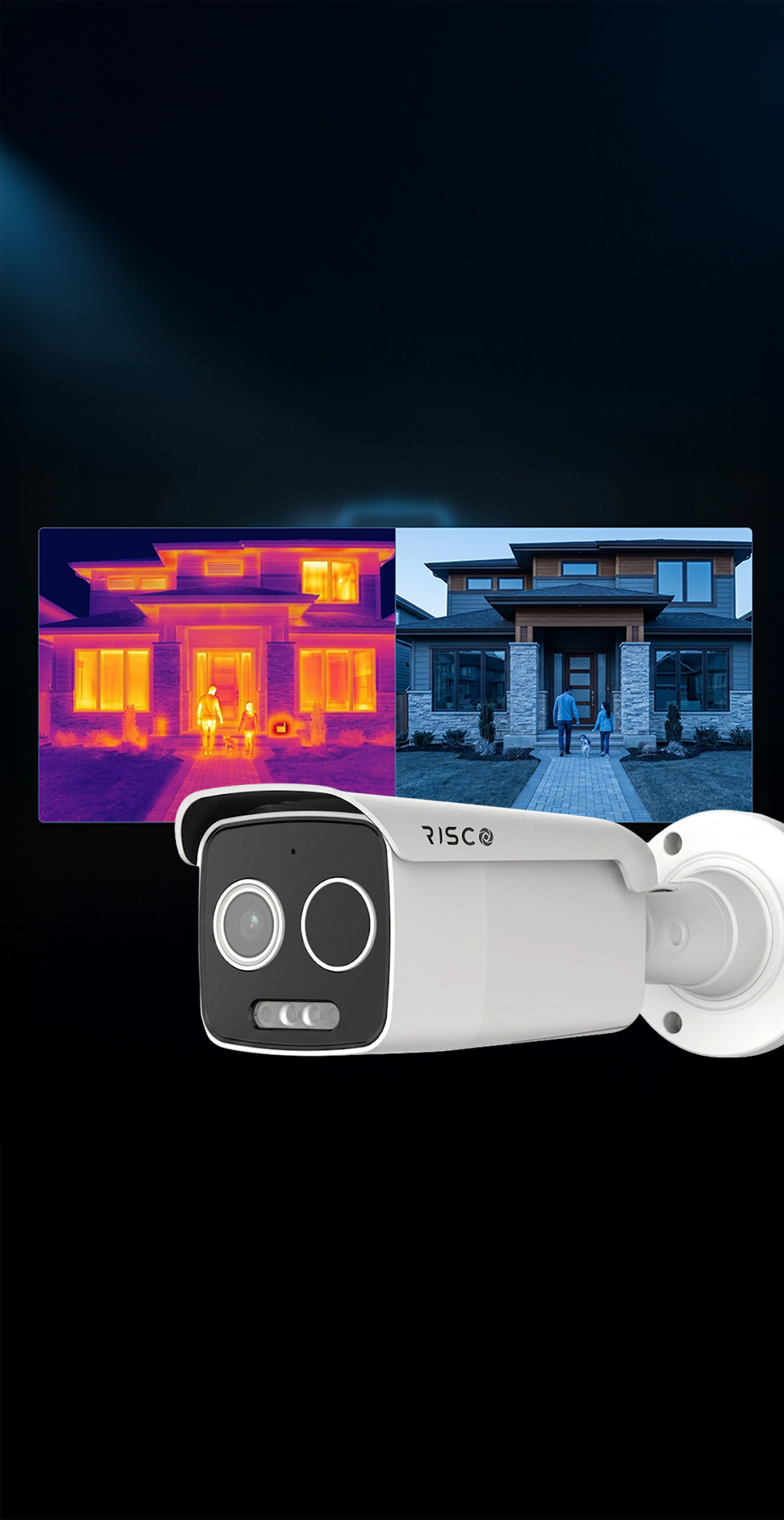

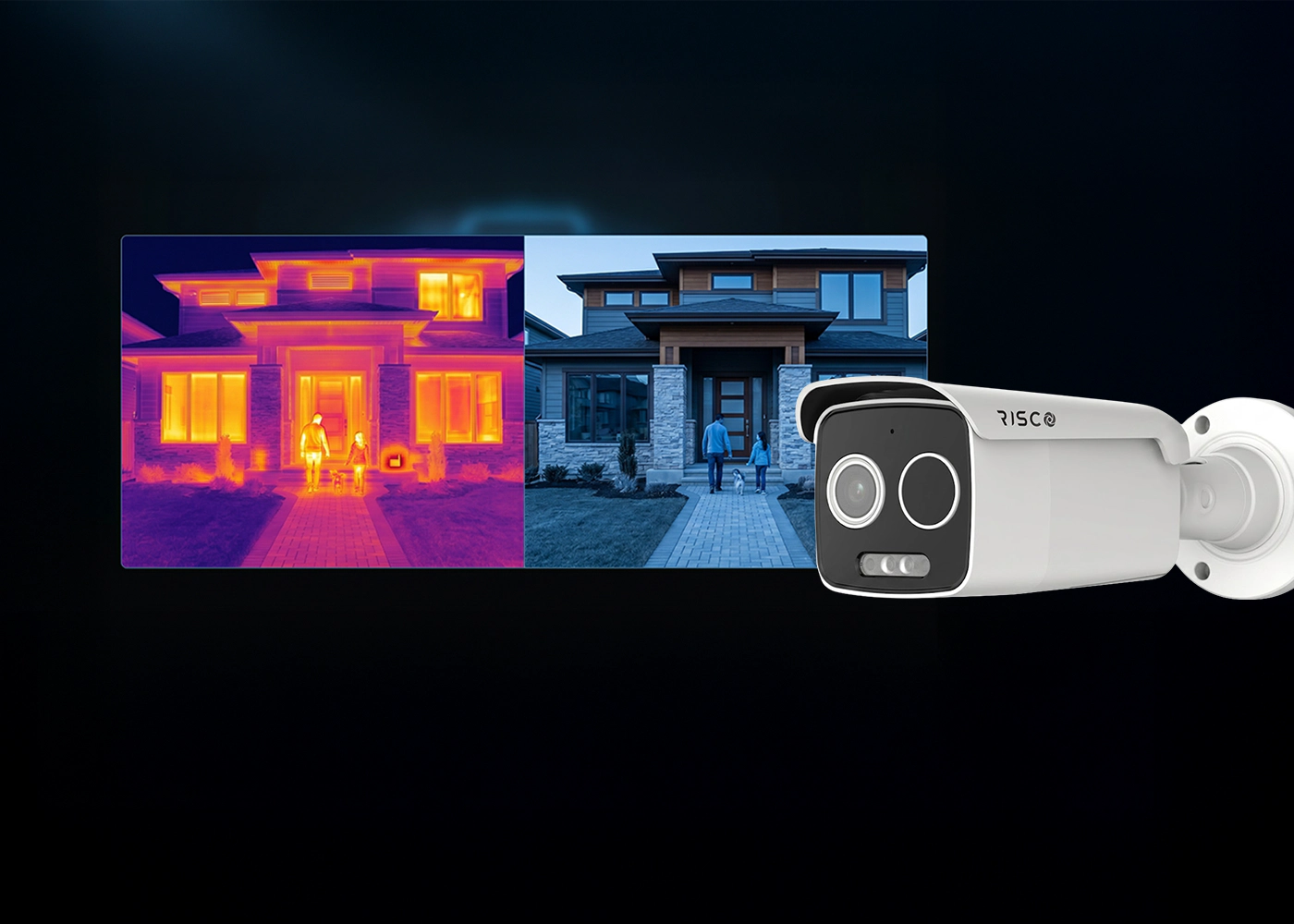

| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Smart Function | |
| Intelligent Analytics | Optical:Motion, Face Detection, Pedestrian & Vehicle, Line Crossing, Intrusion, Enter Region, Exit Region, Object Detection, Crossing Counting, Heat Map, Queue Length, Crowd Density, Rare Sound Thermal: Line Crossing, Intrusion, Enter Region, Exit Region, Fire detection, temperature exception alarm, Pedestrian & Vehicle |
| Temperature Measurement | Global, 12 points, 12 areas, and 12 line |
| Temperature Range | -20 °C to + 550 °C (-4 °F to + 1022°F) |
| Temperature Accuracy | ± 8 °C (± 14.4 °F) |
| Fire Detection | Yes |
| Illumination | |
| Supplement Light Type | IR and Warm Light |
| Supplement Light Range | Up to 30 m (IR) / 15m (Warm light) |
| IR Wavelenght | 850 nm |
| Smart Supplement Light | Yes |
| Warnning Light | 1 Red & 1Blue flashing light |
| Network | |
| Main Stream | Visible Light: 50Hz@25fps; 5MP(2592×1944), 4MP(2592×1520), 3MP(2304×1296), 1080P(1920×1080), 960P(1280*960), 720P(1280×720) 60Hz@30fps; 5MP(2592×1944), 4MP(2592×1520), 3MP(2304×1296), 1080P(1920×1080), 960P(1280*960), 720P(1280×720) Thermal: 50Hz/60Hz@25fps; 1280 × 720, 640 x 480 |
| Sub-stream | Visible Light: 50Hz@25fps; 720P(1280×720), VGA(640×480), QVGA(320×240) 60Hz@30fps; 720P(1280×720), VGA(640×480), QVGA(320×240) Thermal: 50Hz/60Hz@25fps; 640 x 480, 320×240 |
| Mobile Stream | Visible Light: 50Hz@25fps; VGA(640×480),QVGA(320×240) 60Hz@30fps; VGA(640×480),QVGA(320×240) |
| Video Compression | H.265/H.264/MJPEG |
| Audio Compression | G.711u/G.711a |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| User/Host Level | 4 users, 2 levels: Administrator, User |
| Security Measures | User authentication (ID and PW), HTTPS encryption, IP address filtering |
| Integration | |
| Alarm Input | 1-ch inputs |
| Alarm Output | 1-ch outputs |
| Alarm Action | SD recording/ Alarm output/ smart capture/ FTP upload/email linkage/ audio alarm/ Red & Blue flashing light |
| Audio Input | 1-ch inputs / 1 Built-in MIC |
| Audio Output | 1-ch outputs/ 1 Built-in speaker |
| Reset | Yes |
| Communication Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface. |
| SD Memory Card | Built-in micro SD card slot (up to 256 GB) |
| Analog Video Output(BNC) | NA |
| Web Browser | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| General | |
| Menu language | English, Russian, German, Italian, French, Portuguese, Spanish, Turkish, Japanese |
| Power | 12 VDC ± 20%, PoE (802.3af) |
| Power Consumption | TBD |
| Working Temperature/Humidity |
Temperature: -35 °C to 60 °C (-31 °F to 140 °F) Humidity: 90% or less |
| Protection Level | IP67 |
| Dimensions | φ108mm*314.6mm (φ4.25″*12.39″) |
| Weight | Approx. 1.25kg(2.76lb) |
| Environment | RoHS2.0 |
