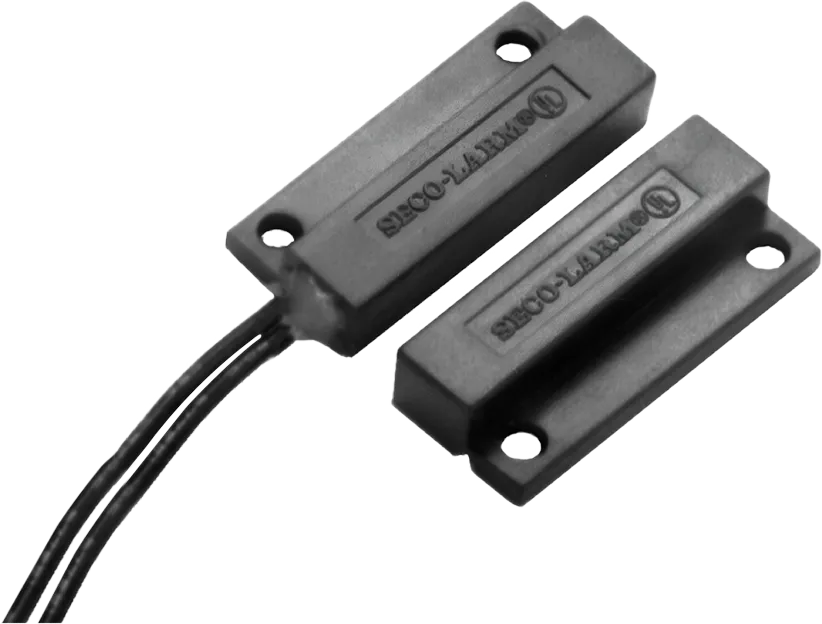

Miniature Surface-Mount Contacts

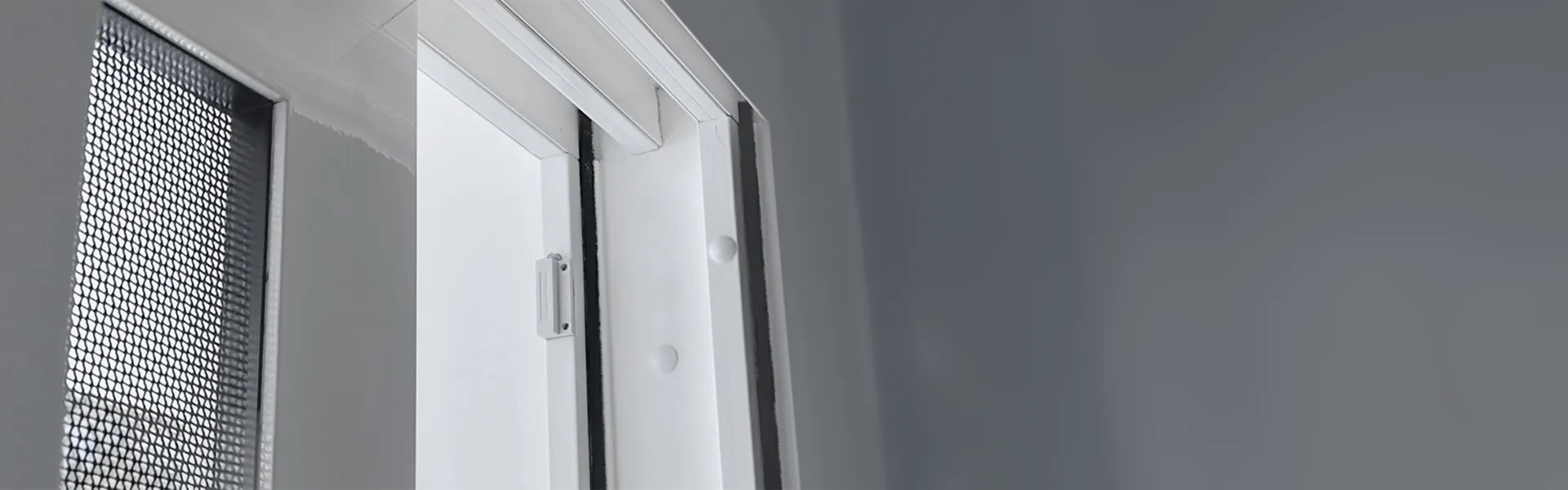

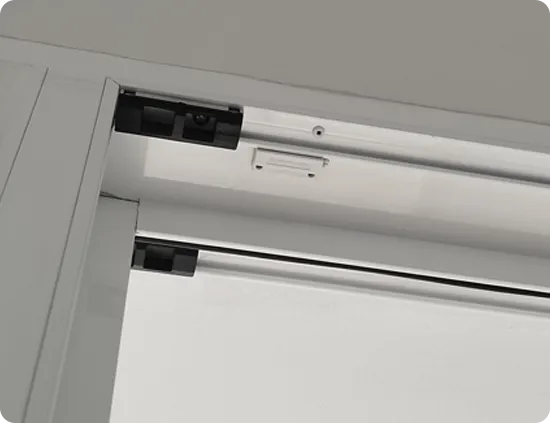

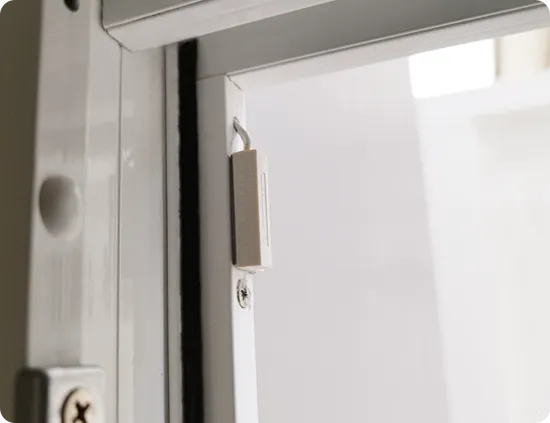

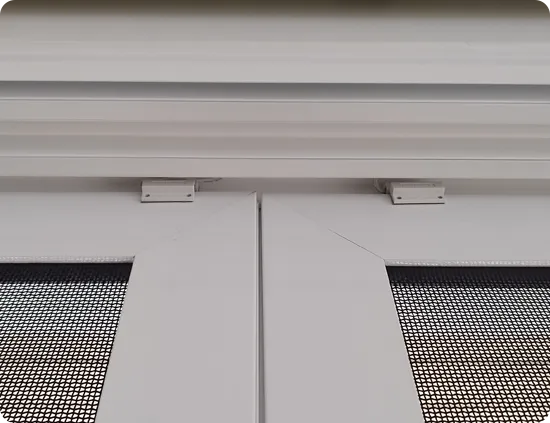

Miniature “flange type” surface-mount magnetic contacts are perfect for sliding doors and windows where space is limited
Screw or adhesive mount (Mounting screws and adhesive backing tape included)
Mounting flange breaks off for extra miniature size
High-impact weatherproof brown ABS plastic case
Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
15″ (38cm) leads extend from side of switch
3/4″ (19mm) Gap
Lifetime limited warranty

หมวดหมู่: Wired Magnetic

Model number		SM-205Q/BR	SM-205Q/W
Circuit type		Closed loop
Operation gap		3⁄4” (19mm)
Color		Brown	White
Terminals		15” (38cm) leads from side
Material	Case	High-impact ABS plastic
	Contacts	Deactivated rhodium on gold under-plating
Contact rating		0.1A@100VDC (max)
		1.0A@10VDC (max)
		10W (max)
Temperature		-15°~160°F (-25°~70°C)
Switch cycles		50 Million (0.1mA@5VDC)
Switch dimensions		13/8′′x3/8′′x1/4′′ (35x10x6mm)
Magnet dimensions		13/8′′x3/8′′x1/4′′ (35x10x6mm)
Magnet type		Alnico 5
