ข้อมูลทางเทคนิค

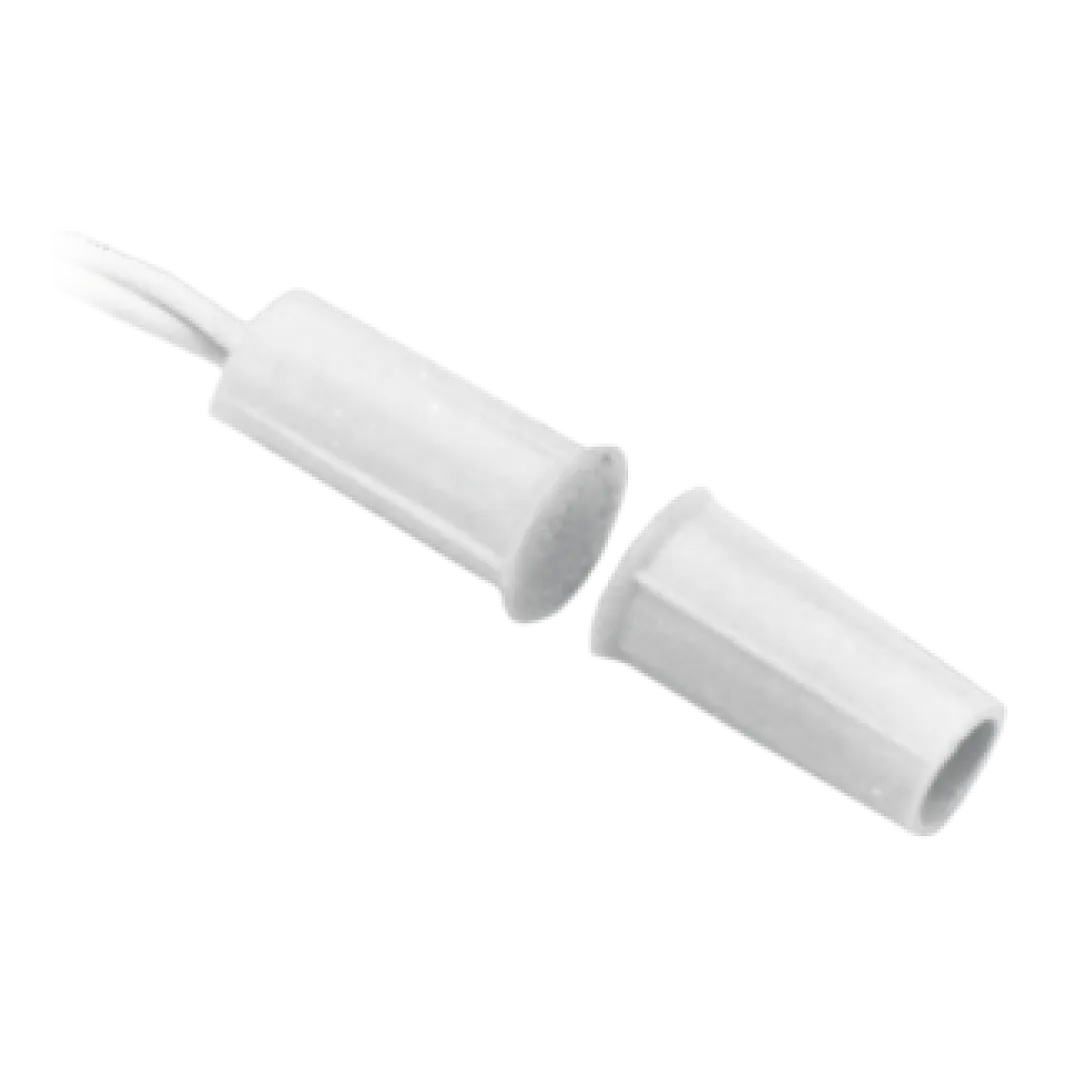

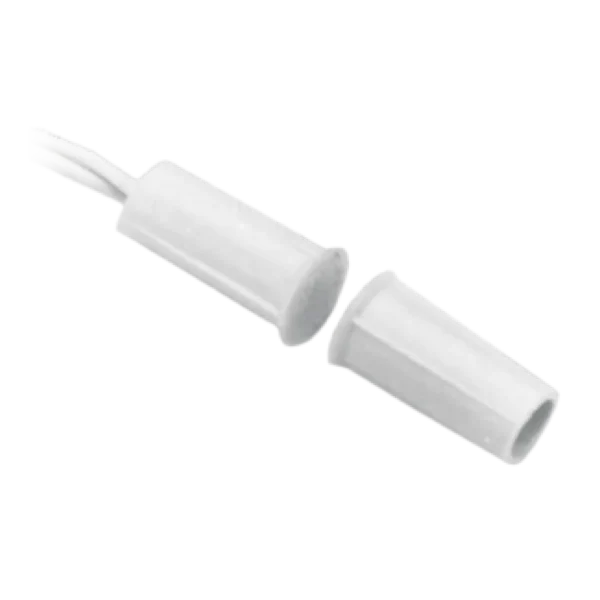

| Model | SM-207-5Q/W | SM-207-5Q/BR |
| Loop Type | Closed loop | |
| Electrical configuration | N.O. (SPST) | |
| Operation gap | 3/8″ (10mm) | |
| Connectors | 15″ (38cm) Leads | |
| Color | White | Brown |
| Material | Case: High impact ABS plastic/epoxy compound | |
| Contacts | Deactivated rhodium on gold underplating | |
| Contact rating | 1.0A@10VDC (max.) | |
| Operating temperature | -15°-160° F (-25°~70° C) | |
| Switch cycles | 50 Million (0.1mA@5VDC) | |
| Dimensions | Switch: 3/4″X07/16″ (19×011 mm) | |
| Magnet | Alnico 5 | |
