Technical specifications

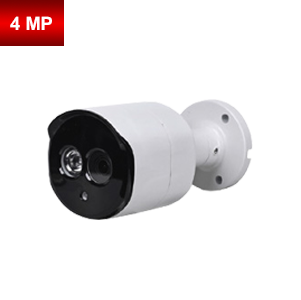

| Model | MWB-2431 |
| Image | |
| Lens | Fixed 3.6mm, F2.1 |
| Angle of View | 83°(H) |
| Image Sensor | 1/3” CMOS sensor |
| Min. Illumination | Color : 0.1 Lux @F2.1
BW : 0 Lux@F2.1 (IR LED On) |
| Wide Dynamic Range | Yes |
| Image effect | Flip, Mirror, Defog |
| IR Illumination Quantity | 1 Array LED |
| Distance | Up to 30m |
| Motorized Lens control | – |
| Video/Audio | |
| Compression | H.264, H.265, MJPEG |
| Bitrate Control | CBR, CVBR |
| Resolution | 2592×1520 ~ 320×240 |
| Frame Rate | Max. 25/30fps (PAL/NTSC) |
| Streaming | Quad Stream |
| System | |
| Video Contents Analysis | Tampering, iVMD, Intrusion Detector |
| Smart Codec | Hi-Stream |
| External In/Out | |
| Ethernet | RJ-45 (10/100Base-T) |
| Audio | – |
| Alarm | – |
| u-SD Card | – |
| ETC | |
| Operating Temperature | -20°C ~ +50°C |
| Power Supply | PoE, DC12V |
| Power Consumption | 106mA (5.1W) @PoE
320mA (3.8W) @DC12V |
| Dimension(WxHxD) | 75.8(W) x 76.6(H) x 150.4(D)mm |
| Ingress Protection | IP66 |
