- Compatible with all of RISCO Group’s wired and hybrid security systems

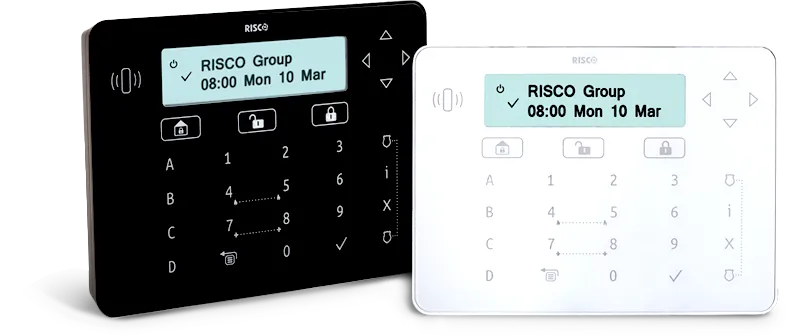

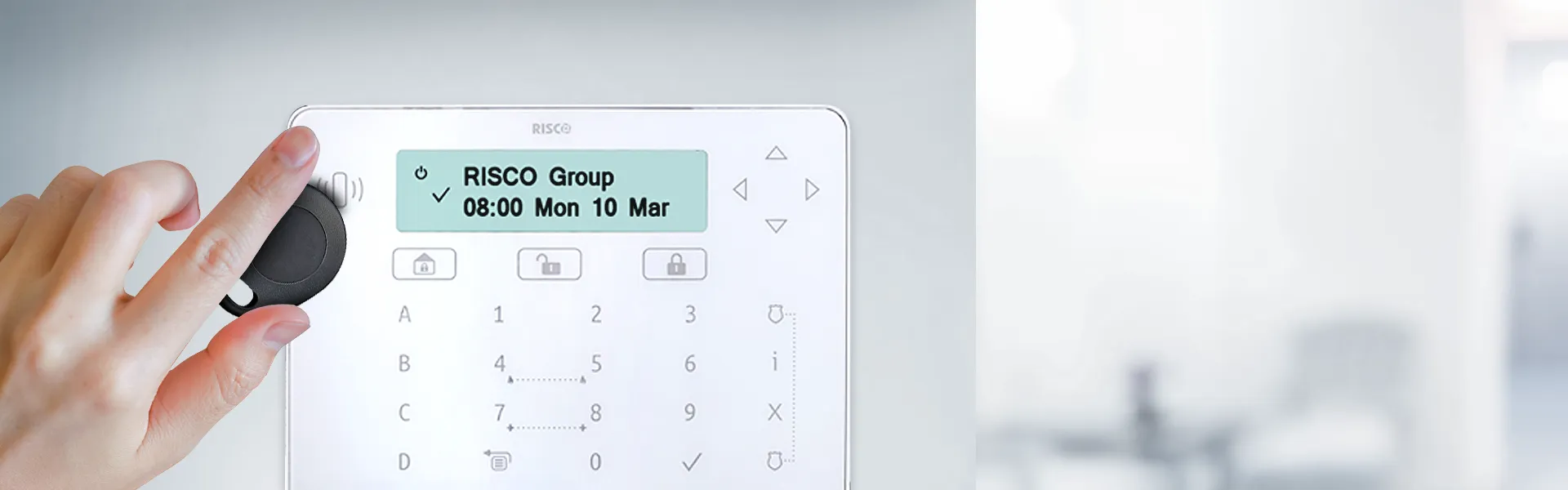

- Available in white or black with or without proximity reader
- Simple to install with removable back plate
- Designed for installation on Italian 503 electrical boxes
- Includes extra zone input for wiring in a relay detector*
- Keypad firmware automatically upgraded from LightSYS™ main panel during installation*

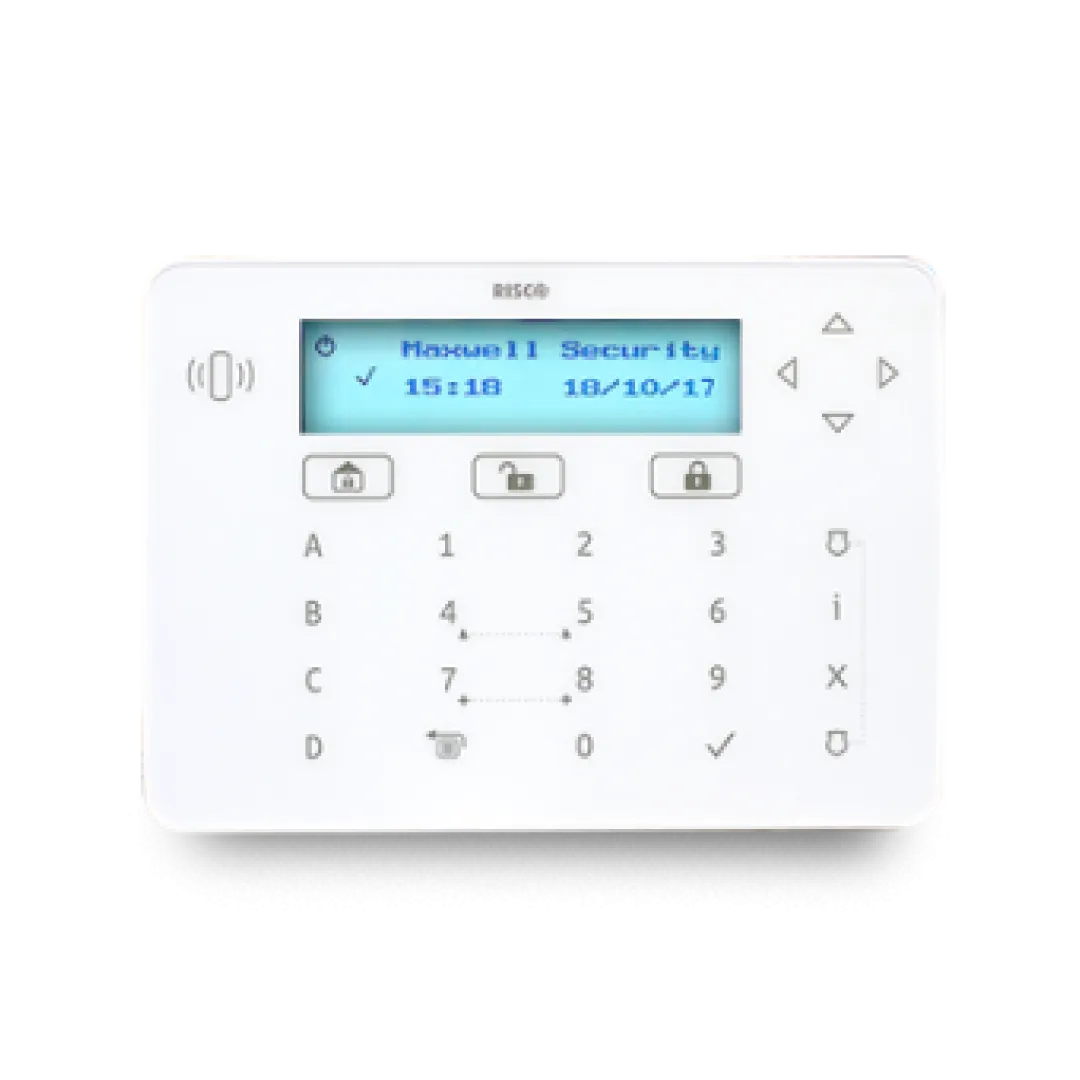

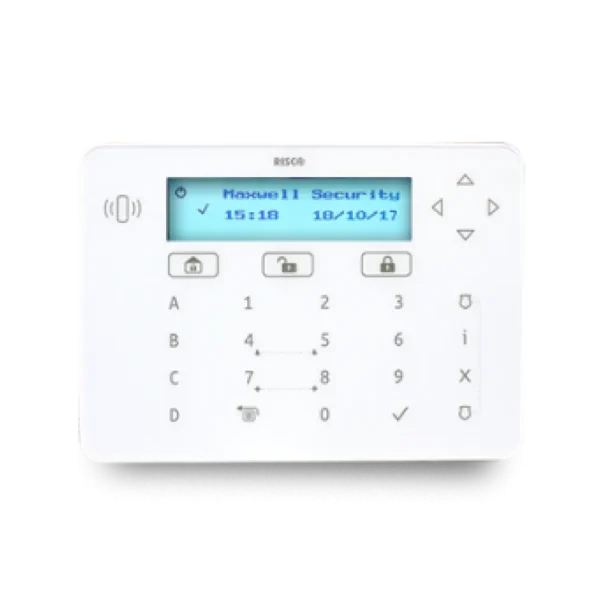

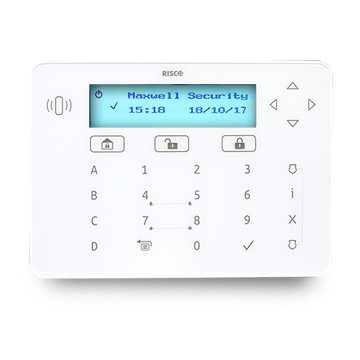

Elegant Keypad (Proximity)
|12V +/-15%, 100 mA max.
12V +/-15%, 150 mA max.
|Main Panel Connection||4-wire BUS, up to 300 m
(1000 ft) from Main Panel
|Dimensions||177 mm x 129 mm x 24
mm (6.9” x 5.0” x 0.9”)
|Operating Temperature||-10°C to 50°C (14°F to

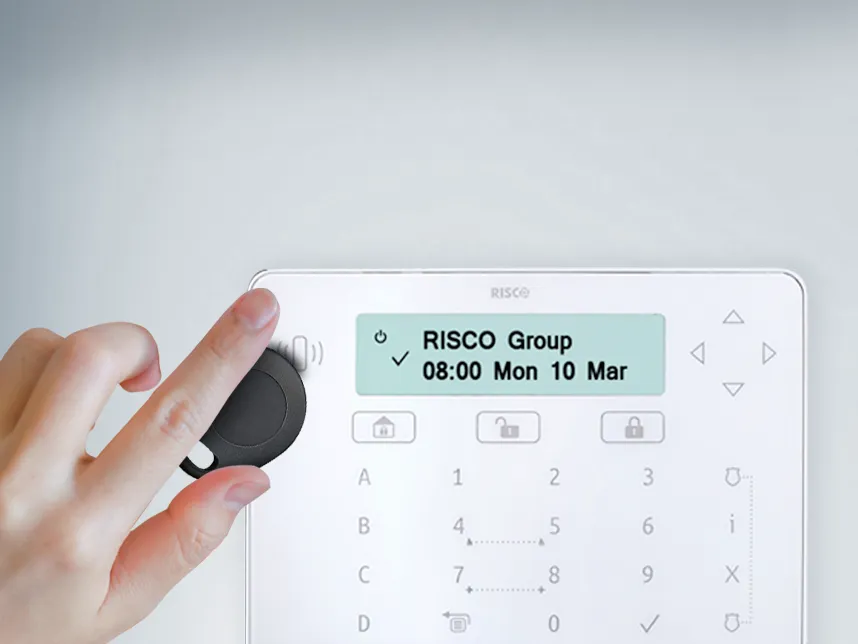

|Prox. RF Frequency||13.56MHz|
