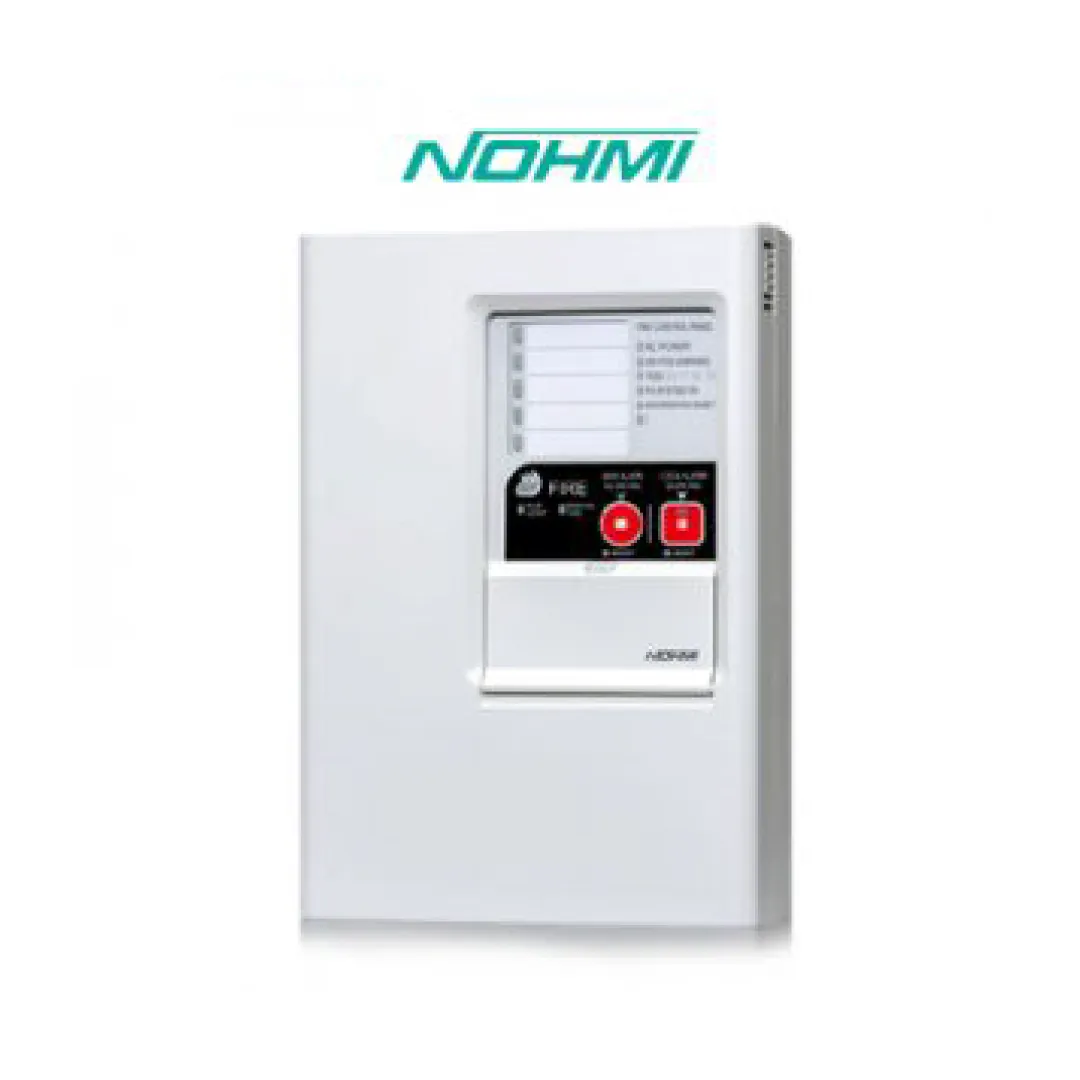

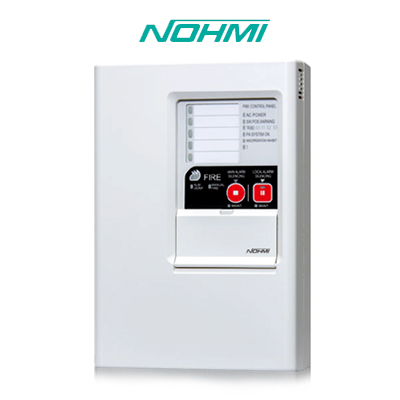

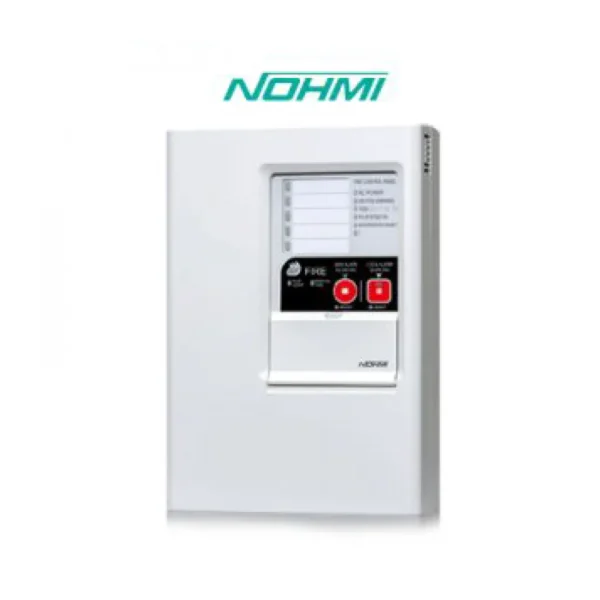

NOHMI FAPN202-R-5L

Fire Alarm Panel

FAPN202-R-5L

Feature

Conventional type 5 fire zones (No Programming required)
Alarm verification type(Alarm verification time:60 seconds)
Self diagnosis system
Misoperation inhibit function
Back-up Power Supply (Ni-cd battery, 24VDC)
Large fire alarm symbol for easy visual recognition
Durable LED indicators
Removable front cover for easy installation and maintenance
Built-in surge arrester for power lines

Description

On receiving a fire signal from a fire detector or a man ual alarm box, the FAPN202-R-5L conventional fire alarm panel produces visual alarms indicating the alarm point, as well as sounding an audible alarm to alert the alarm panel operator . It also produces alarms to alert the occupants of the building premises. The FAPN202-R-5L Conventional fire alarm panel indicates the alarm points on individual zone lamps.

NOTE: Unless called out with a version-specific “C” or “E” at the end of the part number, “NFS-320” refers to models NFS-320, NFS-320C, and NFS-320E; similarly, “CPU-320” refers to models CPU-320, CPU-320C, and CPU-320E.

หมวดหมู่: Fire Alarm, Fire Alarm Control Panel

คำอธิบาย

Conventional type 5 fire zones (No Programming required)
Alarm verification type(Alarm verification time:60 seconds)
Self diagnosis system
Misoperation inhibit function
Back-up Power Supply (Ni-cd battery, 24VDC)
Large fire alarm symbol for easy visual recognition
Durable LED indicators
Removable front cover for easy installation and maintenance
Built-in surge arrester for power lines

Model No.	FAPN202-R-5L
Type	Conventional type
Power Supply :	220 VAC 50/60 Hz
Auxiliary Power Supply :	Ni-Cd battery (24VDC,0.45Ah)
Circuit Voltage :	5,24,48 VDC,24 VAC
Alarm Verification Time :	Thermal detector : 10 sec. ; Smoke detector: 60 sec .
Power Consumption :	Monitoring : 25VA max. approx. Alarm : 40 VA max. approx.
Maximum Number of devices Supported :	Spot types Smoke detectors : 30/zone(max. 150/Panel) Alarm bells : 15 (24VDC, 10mA / bell) Location lamps : 5(30V , 2w /lamp) 15(24V,24mA/LED) 21 (24v,15mA/LED)
Ambient Temperature and Humidity :	0 to 40 ํC , 20 to 85% (RH)
Alarm Input circuit loop resistance:	Less than 50Ω / loop
End-of-Line Resistor :	10 kΩ , 1/2W
Materials (enclosure):	ABS resin with 94UL-V2 flammabi lity rating
Color :	off-white(Nohmi White): approximating Munsell N8.7 or equivalent
Weight :	Aprrox. 3kg.
