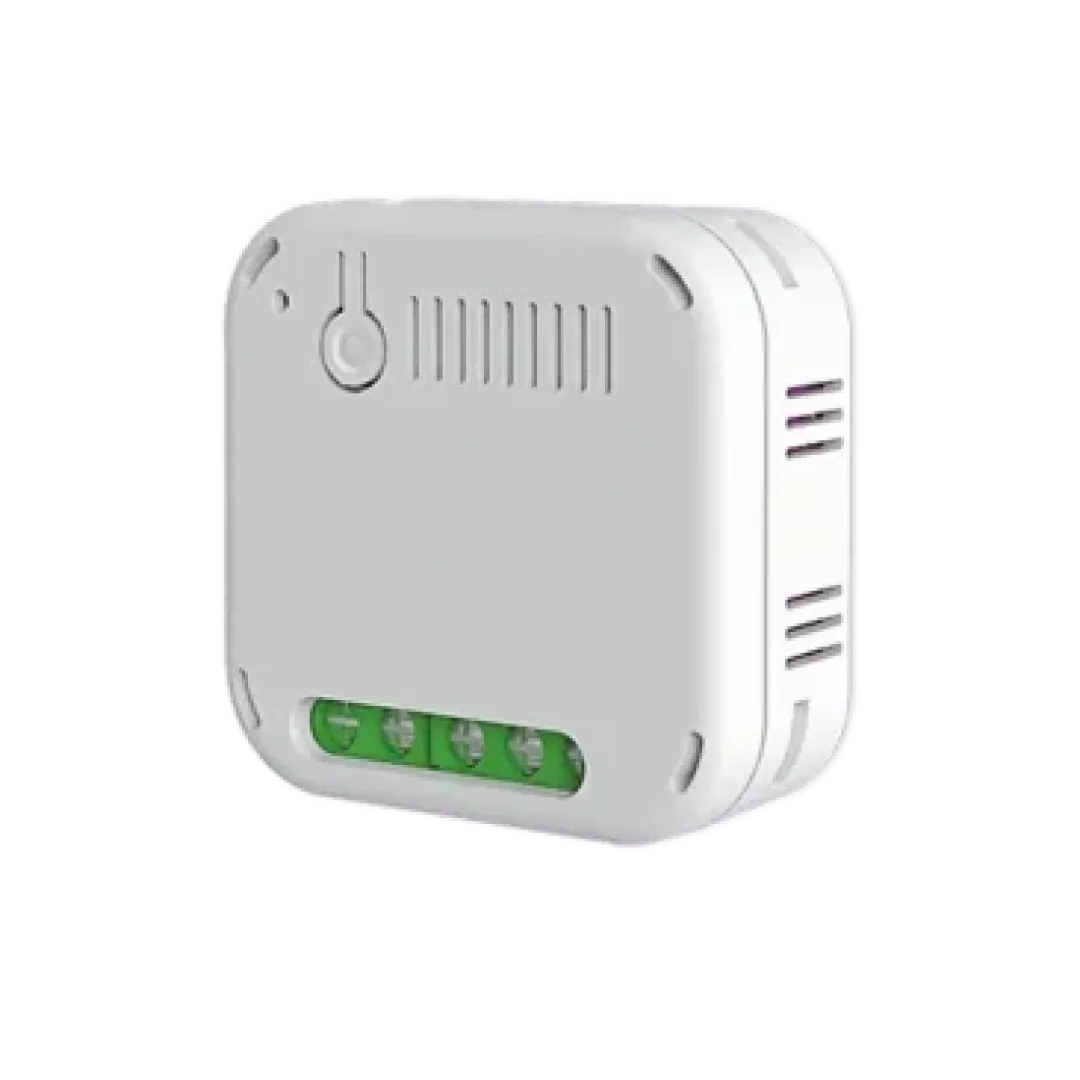

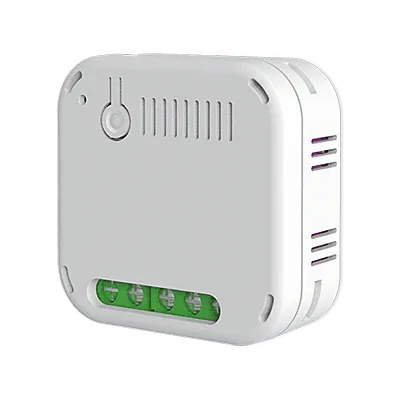

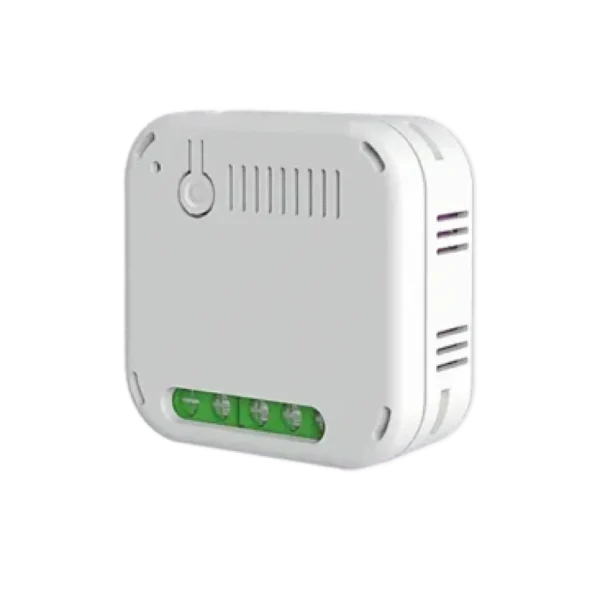

AD370 is an inwall module to dim lighting appliances by Z-wave wireless control.
It uses MOS technology to achieve Trailing-edge dimming for LED lighting and Leading-edge dimming for older lamps.
Compact in design, yet certified for safety makes it suitable for installation in crammed electrical box located behind wall switches.
Dimmer Module-AD370
• Latest Z-Wave 700 series
• MOS technology for Trailing/Leading edge phase dimming
• Suitable for 3-wire and 2-wire (no neutral) connections
• Self -detect whether 3-wire or 2-wire installation
• Installer friendly; no need for loopback cable when 2-wire (Patent-pending)
• Usable dimming range set through Auto Calibration
• Overload and overheat protection
• Integrated scheduler controller
• Power consumption reporting
• Auto-detect load type: resistive, inductive,capacitive
ข้อมูลทางเทคนิค
| Function | MOS Dimmer Module |
| Frequency range | 868.42 MHz |
| RF protocol | Z-Wave Plus |
| RF range (open space) | >100m |
| Max load | – Resistive Load: 276W – Incandescent Load: 200W – Dimmable LED load: 10W~200W (2-wire) 2W~200W (3-wire) – Dimmable electronic transformer for 12V ELV halogen lamps: 10W~200W – Ferromagnetic transformers for 12V operated MLV halogen lamps: 10W~200W – Non-dimmable LED (3-wire) : 60W |
| Power input | AC220V – 240V / 50Hz |
| Operation temperature | 0 – 40°C |
| Operation humidity | 85% RH max |

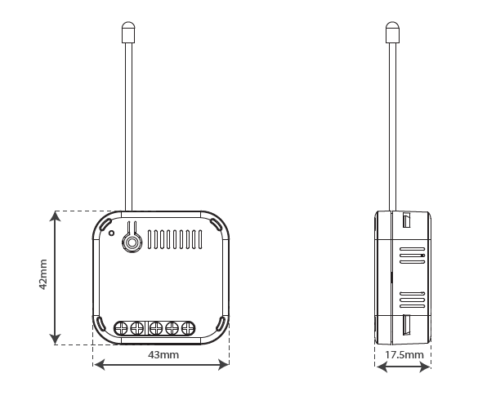

| Dimension (mm) | 43(W) x 42(D) x 17.5(H) |
| Weight | 34g |
