The AN179 is an inwall module to turn on/off any home appliance by wireless control.
Compact in design, yet certified for safety by makes it suitable for installation in crammed electrical box located behind wall switches.
Supporting Z-Wave Plus technology, it is fully compatible with other Z-Wave Plus controllers to create a smarthome environment. This product incorporates the Everspring patented zero-crossing technology to prolong lifetime of the relay.

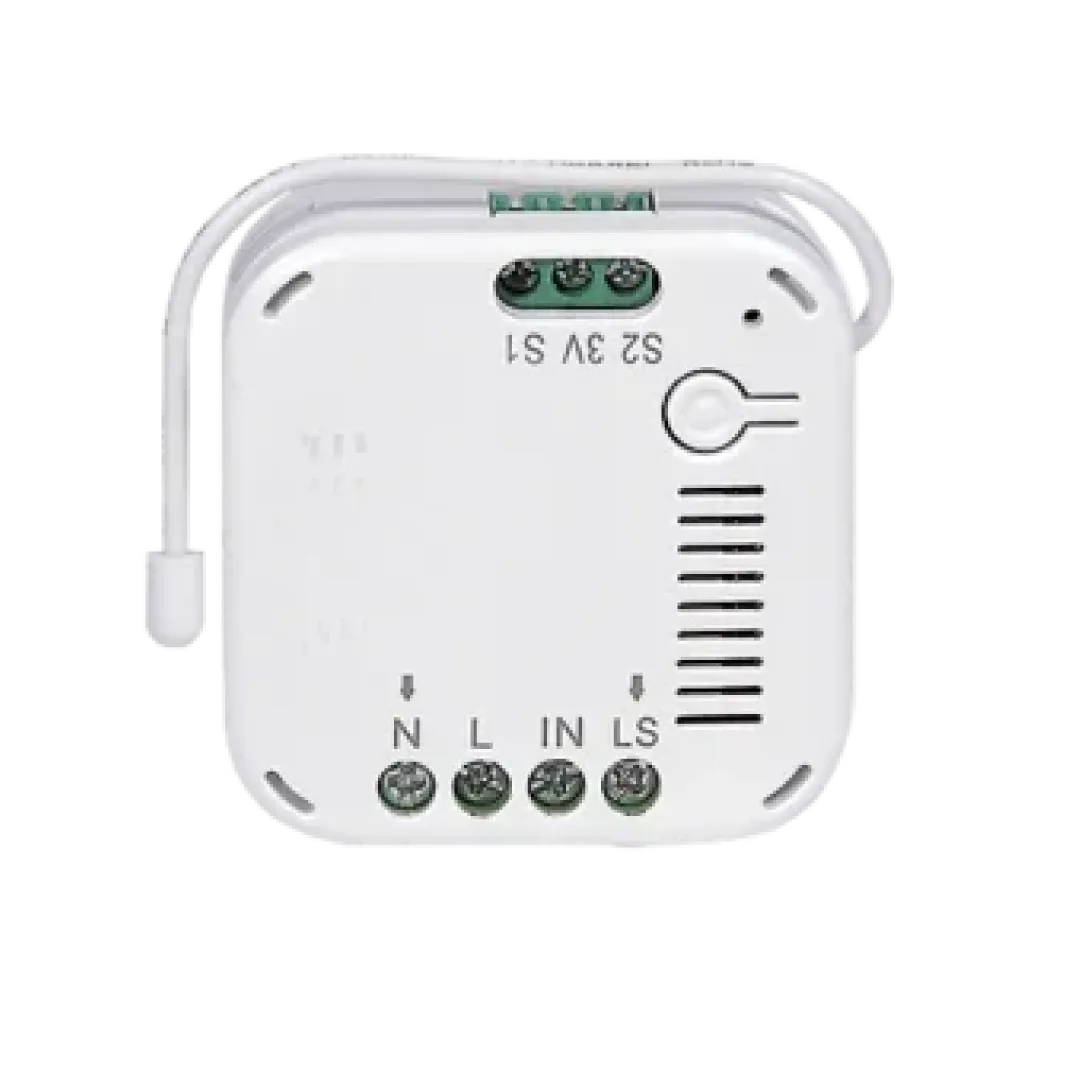

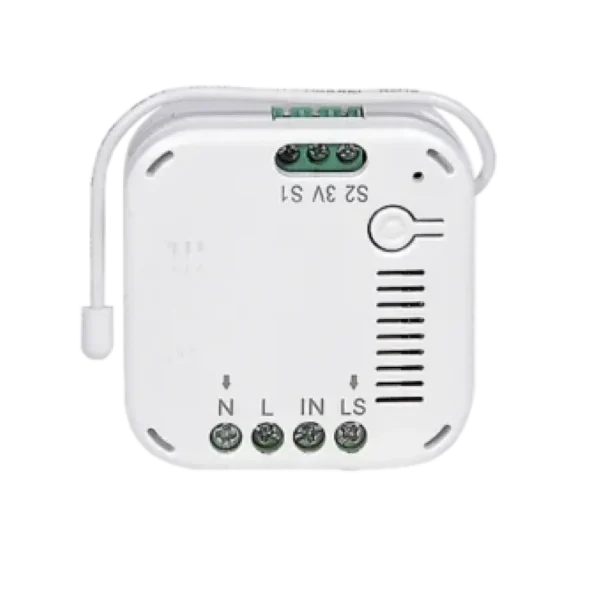

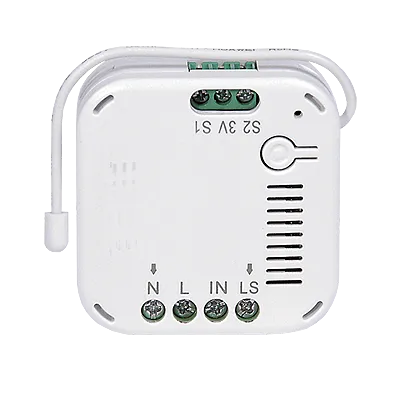

3 wires in-wall module-AN179
• Turn devices on and off by wireless
• Support up to 2500W resistive load
• Dry contact interface to 2-gang wall switch; rocker and momentary types
• Relay input separated from AC; can be use for DC, motor loads, alarms, etc.
• Z-Wave Plus wireless technology SDK 6.5x
• LED indicator and button for pairing
• Remembers last status before power cut
• Hardware overload protection
• Compact size, fits in wall box of major European countries
• Support up to 2500W resistive load
• Dry contact interface to 2-gang wall switch; rocker and momentary types
• Relay input separated from AC; can be use for DC, motor loads, alarms, etc.
• Z-Wave Plus wireless technology SDK 6.5x
• LED indicator and button for pairing
• Remembers last status before power cut
• Hardware overload protection
• Compact size, fits in wall box of major European countries
Download Specification
ข้อมูลทางเทคนิค
| Function | 3-wire in-wall on/off module |
| Frequency range | 868.42 MHz |
| RF protocol | Z-Wave Plus |
| RF range (open space) | >70m |
| Max load | 2500W resistive load 1200W incandescent load 320W fluorescent load 320W LED load (non-dimmable) |
| Power input | AC220V – 240V / 50Hz |
| Operation temperature | -10 – 40°C |
| Operation humidity | 85% RH max |

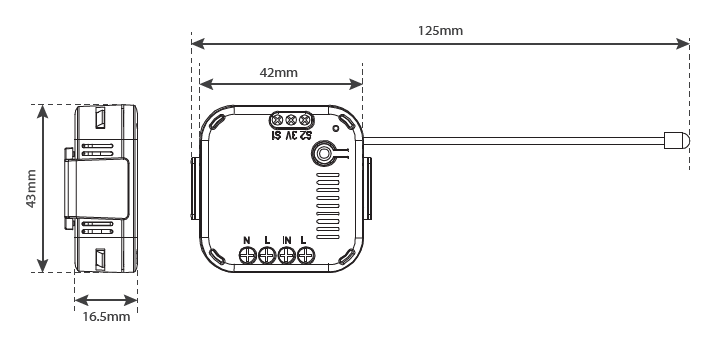

| Dimension (mm) | 43(W) x 42(D) x 16.5(H) |
| Weight | 34g |
