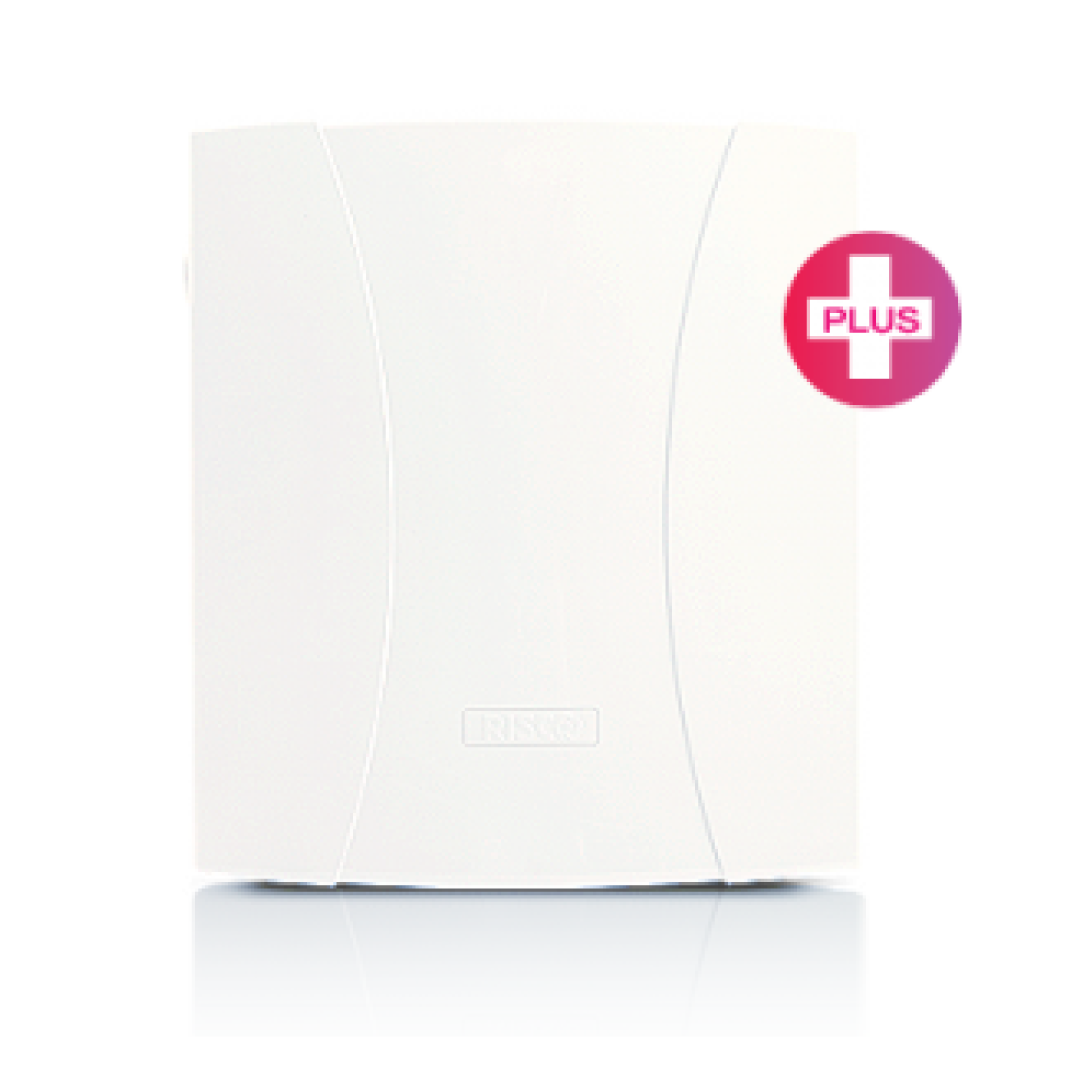

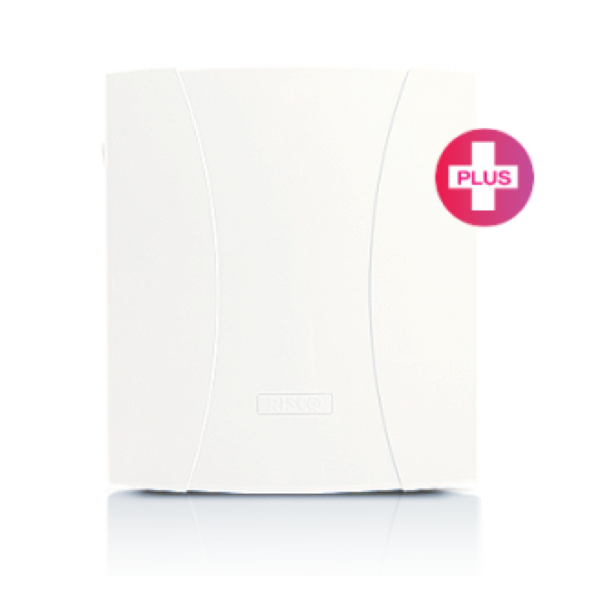

Control Panel LightSYS™+

FLEXIBLE. SMART. POWERFUL

The new LightSYS+ is RISCO’s flagship hybrid alarm panel, combines the features and benefits of both LightSYS and ProSYS Plus into one high-powered hybrid security system.

It is designed to protect any size or type of installation – from residential and small to medium businesses to commercial and high security installations, enabling up to 512 zones in one single panel!

หมวดหมู่: ,

The Most Powerful Hybrid Security Panel

LightSYS+ is compatible with all of RISCO’s solutions, products and accessories, providing you with a World of possibilities for every type and size of installation.

Focus on a single panel for all your installations and increase your profitability by offering a Grade 3 solution at a highly competitive price.

The LightSYS+ panel can accommodate up to 512 zones in any combination, in either Grade 2 or Grade 3

New Mechanical Design

A protective structure covers the PCB and other components, making it more robust and easier to install the system

Built-In IP and Wi-Fi Modules

An integrated IP module reliable and continuos communication, and integrated Wi-Fi module allows wire-free inastallation.

New USB Type-C Input

With a fast USB TYPE- C input, any laptop can be connected with a standard cable allowing quick and simple system setup and update.

คุณสมบัติ

  • Up To 512 zones in one panel
  • Integrated Wi-Fi and IP Modules for fast & stable communication
  • Compatible with RISCO’s indoor and outdoor wireless camera detectors for visual verification
  • Unique protective cover – Securing the control panel for increased robustness
  • C-Type-USB Input – Conveniently use a standard cable for fast upgrade & setup
  • Grade 2 and Grade 3

ข้อมูลทางเทคนิค

  • EN 50131 certified Grade 2 or 3 (according to the installation)
  • Zones 8 – 512
  • Wireless zones 256
  • PIR cameras detectors 32
  • IP cameras Unlimited
  • Partitions 32 + 4 groups per partition
  • Bus lines 2+1 fast Bus for faster photo and video data transformation
  • Bus devices per Bus line 32
  • Wired keypads 32
  • Wireless keypads 32
  • Keyfobs (1 or 2-Way) 256
  • Proximity key readers 48
  • Wireless sirens 32
  • Wired sirens 24
  • Programmable outputs 4-196
  • User codes 500
  • MS destinations 3
  • Follow me destinations 64
  • Event log 2000
  • Reporting format Contact ID, SIA level 2 & 3 (text support), IP/GSM Receiver, SIA IP (with encryption)
  • EOL zone resistance Selectable on the panel for easy retrofit
  • Plug-in communication modules 2G or 4G modules, PSTN (will be released Q3 2022)
  • Enclosure Small or Large Polycarbonate box or large Metal cover box
  • Installer programming methods -Local using the keypad
    -Local using standard USB Type-C for Configuration Software
    -Remote using Configuration Software, via IP/Cellular or Cloud
  • Remote diagnostics and configuration On Bus device and 2 -Way Wireless device, using Configuration Software
  • Firmware upgrade Remote via cellular or IP
  • IP module on-board
  • IP module ensures a fast and stable connection. Use IP as the primary connection and an optional 2G/4G plug-in module as a backup for a high level of security. That also allows reducing the GSM data usage cost.
  • Current Consumption: 60 mA standby, 115mA max.
  • Wi-Fi module on-board
  • A built-in Wi-Fi Communication module offers a convenient solution for faster installation by saving the need to wire a LAN cable to the Control Panel.
  • Wi-Fi 802.11 b/g/n 2.4 GHz
  • Current Consumption 60 mA standby, 115mA max.
